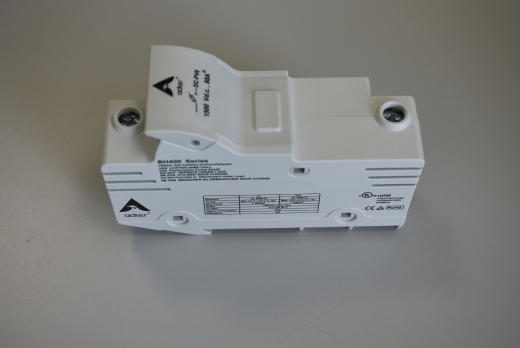

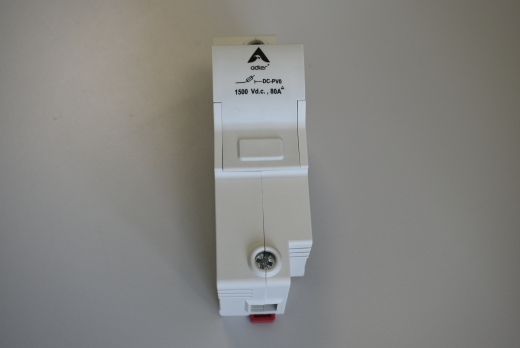

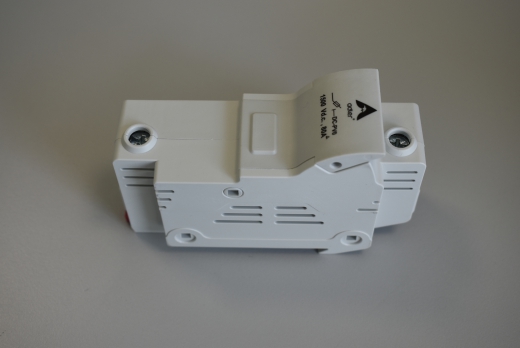

Adler BH400 1500 V 80 A 22x58mm

Product no.: EM725

Adler’s BH400 touch safe fuse holders are designed for all standard 22x58 mm PV fuses such as ADLER A94 series and other cylindrical fuses up to 22x58 mm. With current ratings up to 80 A at 1500 Vdc, it can effectively protect 1500 Vdc circuits and equipment in photovoltaic applications.

SPECIFICATIONS

• Rated Voltage: 1500 Vdc
• Rated Current: 80 A
• Rated Breaking Capacity: 10 kA
• Rated Impulse Withstand Voltage (Uimp): 8kV
• Wire Range: 1-12 AWG
• Max. Torque: 4 N.m
• Max. Dissipation: 8 W
• Temperature Tolerance (RTIstr): -40℃ to +90℃
• Material Flammability: UL 94-V0
• Mounting: DIN Rail mounting
• Standards: UL 4248-19; EN 60947-3
• Approvals: UL (File: E486822)
• TUV (File: R50460275)

Price:

9,82 EUR

19 % VAT incl. excl. Shipping costs
