Adler AE2 EV Fuse 500 VDC, IR20kA, Level Mount

DESCRIPTION
Adler AE2 series EV fuses is specially engineered and tested to provide best-in-class auxiliary protection and high performance protection in managing systems of Electrical and Hybrid Electrical Vehicles, up to 500 Vdc in ratings from 10 – 50 A. The AE2 was specifically built from the ground up to meet the stringent requirements and standards of the electric vehicle industry.

AGENCY INFORMATION

• Ref. To UL 248-20, ISO 8820-8, GB/T 31465.6
• Approval: TÜV and UL
• Manufactured under IATF 16949 quality system
• RoHS and REACH Compliant

APPLICATIONS

• Control fuse
• Batterie Managment Systems (BMS)
• Inverters
• Battery Charge Controllers

FEATURES

• 500 Vdc automotive fuse
• Rated Current: 10-50 A
• Max. BC: 20 kA@500 Vdc Min. BC: 2In@500 Vdc
• Time Constant: 2 ± 0.5 ms

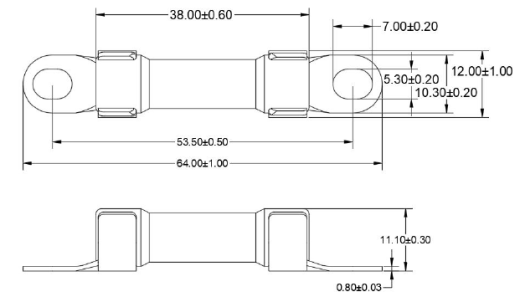

• Dimensions: 10x38 mm
• General purpose fuse for EV/HEV auxiliary protection
• Recommended fuse holder: BH114

Version: Level mount (bolt / screw fastening with fastening tab at the bottom)

Note: Not all current values are stock items. The 2-3 days indicated refer to stock items. If you do not see a warning in the shopping cart, this information is correct. Delivery time for non-stock items is approx. 8 weeks.

Options:

• Rated current: 10A
• Rated current: 15A
• Rated current: 20A
• Rated current: 25A
• Rated current: 30A
• Rated current: 35A
• Rated current: 40A
• Rated current: 45A
• Rated current: 50A

Price:

4,88 EUR

19 % VAT incl. excl. Shipping costs
